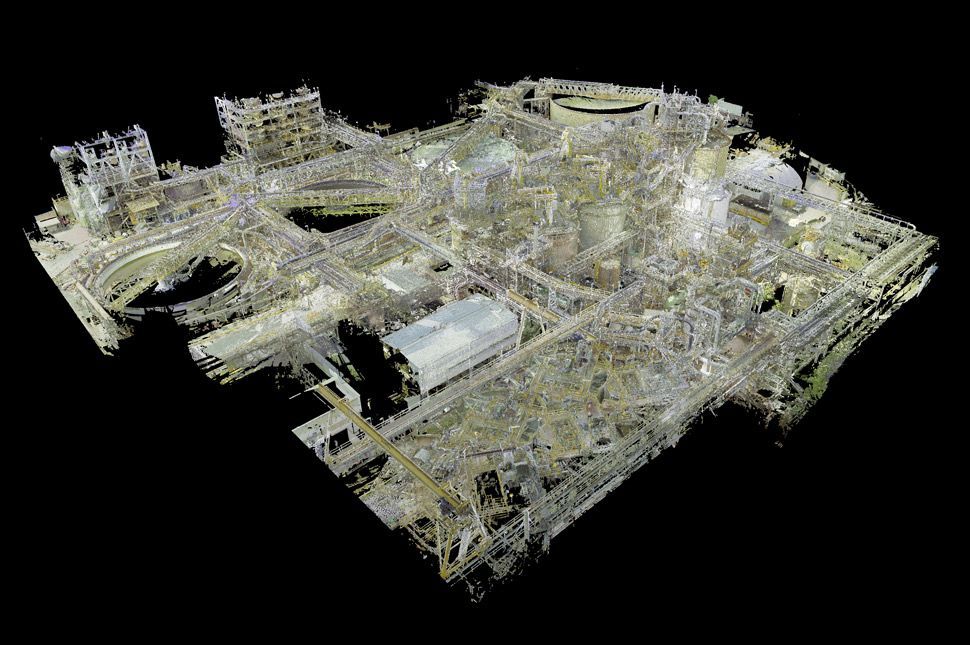

SETCH Design was engaged to laser scan multiple areas of interest spread throughout the processing plant at a large scale mine site.
By using two laser scanners, SETCH employees were able to achieve a total of 350 scans within five days. This obtained complete coverage of all areas required. All 350 scans were linked together with millimetre accuracy across the full data set which was then aligned to site datum as requested by the client. The point cloud was delivered in multiple formats with a rapid turn around.
Key Services
- Total coverage of scoped areas
- Millimetre accuracy
- Aligned to site datum
- Delivered in multiple formats
SETCH Design was engaged to laser scan and model the header pipework and supports of the seawater supply line at a large scale processing plant.
Each month SETCH is tasked with providing the volumes of stockpiles across multiple locations.
SETCH Design was tasked with scanning a large section of brownfield plant for new piping to be run.
SETCH Design was engaged to scan and check fabrication of a two part tank liner prior to installation.
SETCH Design was engaged to design a new spoon chute, supporting maintenance platform for a shiploader and conduct a lift study of new components.
SETCH Design was engaged to detail new acid piping for a brownfield plant.
SETCH Design was engaged to scan numerous pipe spools before transport to site to ensure accurate fabrication dimensions when compared to design.
SETCH Design was chartered to extensively scan 3 sets of rail each over a kilometre long and report on the multiple alignment parameters.
SETCH Design were given the task to design, detail and RPEQ certify 4 x complex pump access platforms.
